Air Conditioning, CBRN Filtration and Detection System
CBRN Filtration Systems has 3 different usage options that are:
1. CBRN Filtration Systems with Positive Pressure
2. Masked Type CBRN Filtration Systems and Positive Pressure
3. Independent Masked CBRN Filtration Systems.

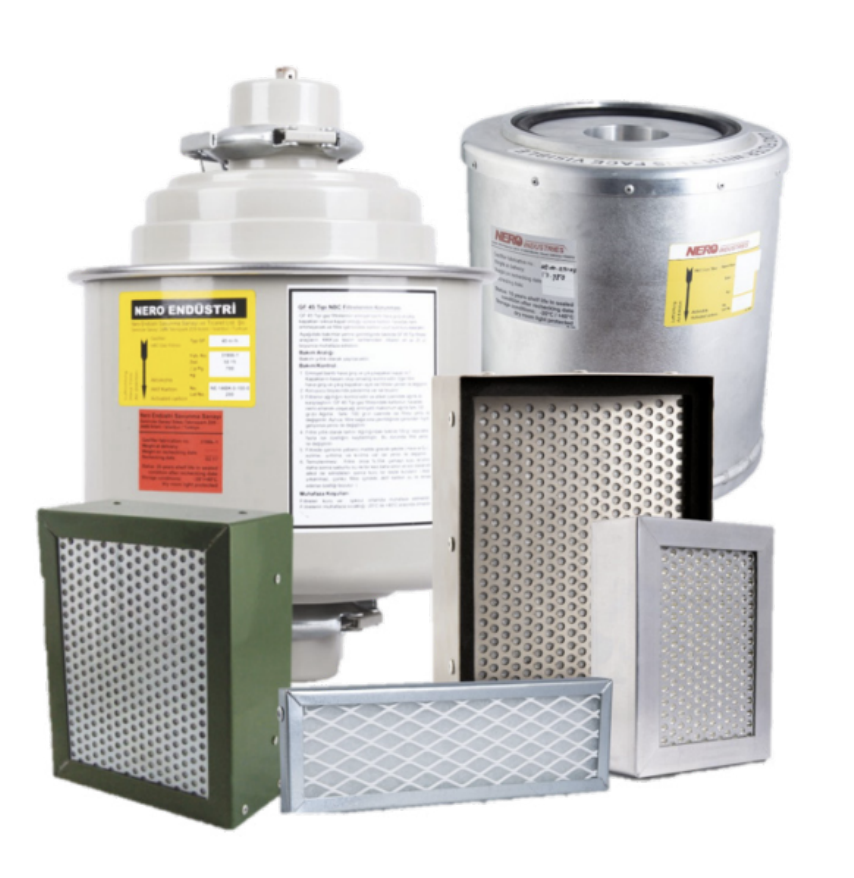

CBRN Filtration Systems have 3 main system components which are Control Units, CBRN Filters and CBRN Enclosures. The systems have successfully passed high temperature, low temperature, high humidity, shock-vibration and EMI/EMC tests and has the capability to be mechanically integrated to the existing systems of the vehicle.
CBRN Filtration systems can provide conditioned air to the user according to the prevailing conditions and circumstances. It can be integrated into vehicle air-conditioning system for cooling the air. CBRN Filtration Systems offered by Fitech are used on military, civilian vehicles, safety facilities, command shelters and armoured vehicles.
- Masked Type CBRN System
The system protects the crew against chemical, biological, radiological and nuclear threats is provided by blowing adjustable fresh air filtrated by masks within the vehicle attached to private separate lines for each user with Masked Type CBRN System which has 90m3/h air flow rate.
The filtered clean air in masked type systems are delivered to the crew with the help of pipes and hoses. In masked CBRN systems, masks are allocated to each crew with separate lines. According to Nato AEP54 standards, system pipelines and Filters are designed to be 9 m3 / hour for each crew member in the vehicle.
Our Masked Type CBRN systems solution provides clean air from 2 to 17 crews. This usage can be specially designed considering the customer’s requests. The most frequently used CBRN systems in the world are Mask type CBRN systems with Digital CBRN Control boxes.
Technical Specifications
It gives an error when there is a pressure difference
Digital Indicator for Pressure measurement
Shelf life of 10 years
16-32VDC Voltage
Operating Temperature -30°C to +55°C
Storage Temperature -40°C to +71°C
90 m3/h Air flow
- Positive Pressure CBRN System
Positive Pressure CBRN Systems are mainly used in military vehicles and command shelters. These systems provide filtered clean air from the moment it operates with the in built fans on the environment where CBRN threats occur. The CBRN system increases the pressure of the air vehicle inside where the air is pressed to 200 pascal pressure, depending on the space volume and fan flow, appx 5 seconds after the operation. Positive pressure = Ambient Pressure – Atmospheric pressure.
In positive pressure CBRN systems, air discharge is started after 200 pascal. This discharge is provided by the blast valve. blast valves prevent the pressure of the environment from exceeding 200 pascal with its adjustable spring structure. Positive pressure CBRN systems are designed, manufactured and tested in accordance with NATO AEP54 standards.
Positive pressure CBRN systems are generally used in military vehicles with leak guarantee and in shelters of ground control station. Positive pressure CBRN systems can work in compliance with all types of CBRN filter systems such as cassette type and radial type.
Technical Specifications
It gives an error when there is a pressure difference
Analog Indicator for Pressure measurement
Shelf life of 10 years
416-32VDC Voltage
Operating Temperature -30°C to +55°C
80 m3/h Air flow
Filtration & Ventilation mode
High pressure is blown out through blast valve
